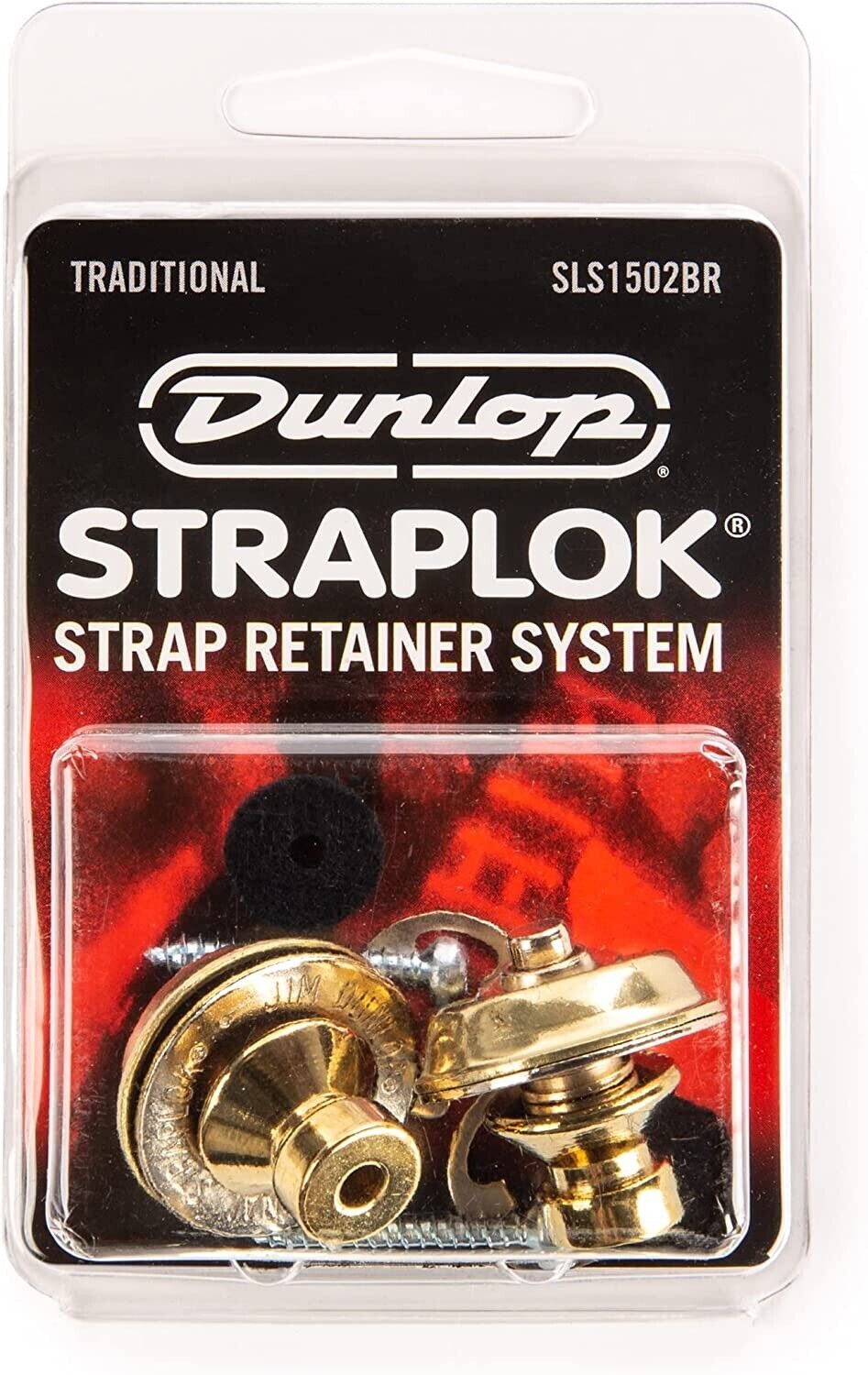

Dunlop Straplok Traditional Strap Retainers Brass Strap Locks SLS1502BR
Dunlop Straplok Traditional Strap Retainers Brass Strap Locks SLS1502BR
Regular price
£23.49 GBP
Regular price
Sale price
£23.49 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Jim Dunlop StrapLok Traditional Set Strap Retainers / Strap Locks
SLS1502BR
Colour: Brass
Jim Dunlop Traditional Mount Straploks are used as standard equipment on many of the top guitars and basses made around the world. Each Traditional Mount Strap Lock Kit includes everything needed to install on your own instrument. The Dual Design button even allows for use without the Dunlop Straplok connector.
Included with each set
2 x Straplok Strap Attachments
2 x Traditional Mount Straplok Internal Mounting Button
2 x Screws
INSTALLATION INSTRUCTIONS
Please follow instructions very carefully and use all provided parts. If you do not feel comfortable performing this installation yourself, have it done by a reputable luthier or guitar repair technician.
Locking Pin Assembly:
1. Slip locking pin (1) through the recessed washer (2).
2. Insert locking pin (1) through strap hole (3).
3. Slip flat washer (4) over locking pin (1) against strap (3).
4. Snap retainer clip (5) into locking pin’s shank groove (1).
Strap Button Instructions:
1. Secure body of instrument to a flat surface such as a table or workbench and remove existing strap buttons.If neck is bolted on,remove it for easier access.
2. With a 7/64ʺ bit, drill 7/8” deep into existing strap button hole.
3. Place strap button (6) over hole. Lubricate tip of mounting screw (7) with a small amount of wax or bar soap and screw it into the strap button hole with a #2 Phillips screwdriver.
4. Rotate clockwise until snug.
5. Repeat for other Straplok button.
OPERATING INSTRUCTIONS
To Lock:
1. Press locking pin plunger (1) & insert pin assembly into strap button (6).
2. Release plunger when unit is FULLY locked.
3. Pull on strap to check for secure lock.
To Unlock:
1. Press locking pin plunger (1).
2. Remove locking pin (1) from strap button (6) and release plunger.
Maintenance:
It is important to periodically maintain the Straplok system. Keeping the ball bearings and the locking pin lubricated is VERY important, as is making sure there is nothing inside the strap button. We recommend the following items to assist you:
1. Cotton Swabs
2. Lubricant Spray
